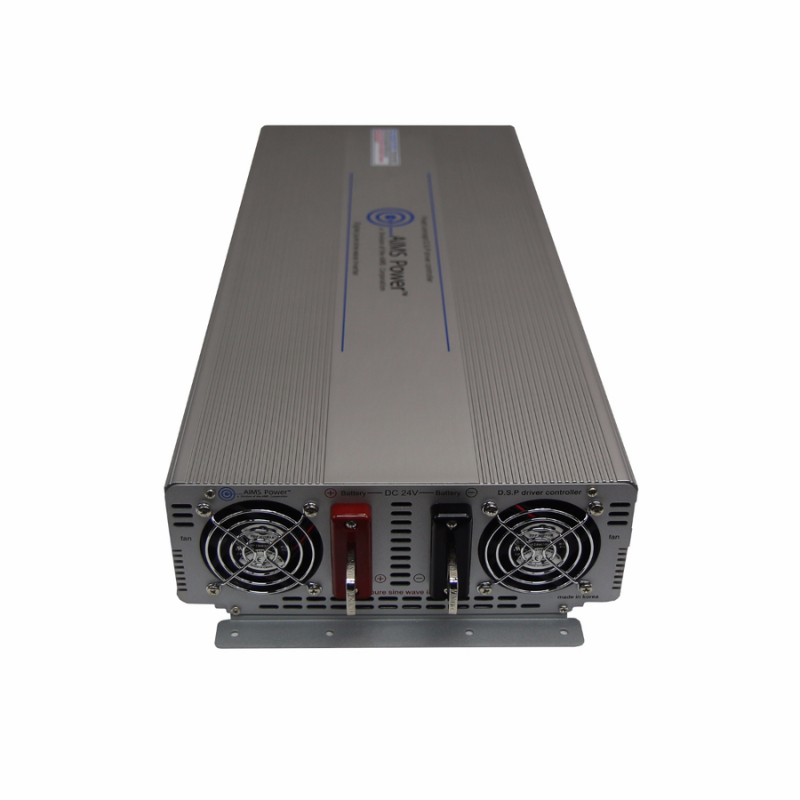

AIMS Power 3000 Watt Pure Sine Inverter 24 Volt - Industrial Grade

AIMS Power is proud to bring you this new 3000 Watt Pure Sine Power Inverter, designed for harsh environments, which has been completely overhauled and now boasts a dual GFCI outlet and is FCC certified. This product also includes a thermally controlled fan, allowing for increased efficiency and less noise.

It will continue to put out stable, pure sine power and maintain output voltage, even as you battery bank voltage decreases. High output performance is achieved through a DSP (Digital Signal Process) drive. This inverter is ideal for running nonlinear loads (such as variable speed motors and small compressors).

Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer servers, microwaves, medical equipment, any with a circuit board and cordless drill battery chargers. An external battery voltage sensor will allow you to monitor your battery capacity and power consumption.

Packed with 3000 watts of power, this inverter can be used for off-grid home back up power systems, solar, boat, work vehicles and RVs.

Features:

• 3000 Watt continuous power
• 6000 Watt surge
• 24 Volt DC input
• Pure sine wave
• 60hz or 50hz switch
• Highly efficient - improved output at low voltage

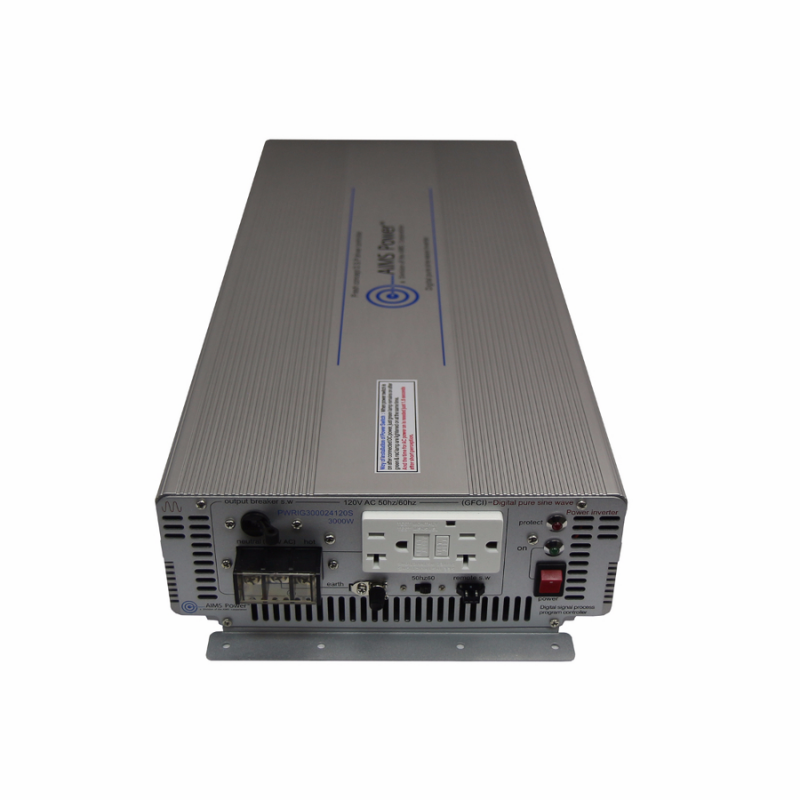

• 1 - GFCI Dual Outlet
• Direct connect AC Terminal Block

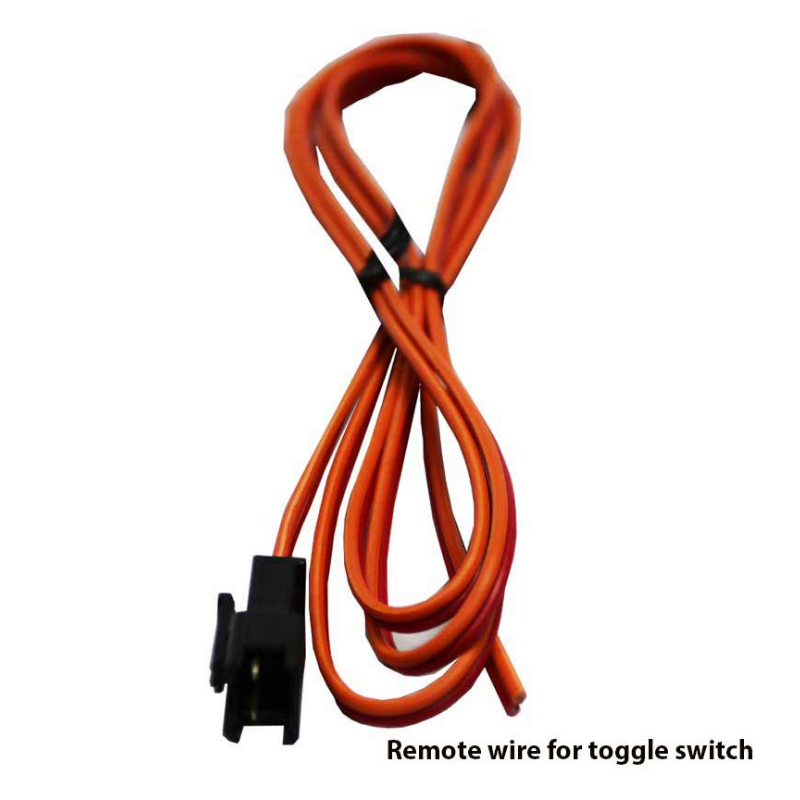

• Connector and cable for remote on/off switch
• Isolated ground & neutral
• Short circuit protection (GFCI and AC Breaker)
• On/off switch
• 5 Function Protection LED indicator
• AC Breaker
• DC volt meter included
• Dual cooling fans thermally controlled
• Instruction manual
• 1 year tech support
• 1 Year Warranty Parts and Labor replacement

Specifications:

• Continuous output power: 3000 Watts
• Surge power capability (peak power): 6000 Watts
• DC input / operating voltage: 21-32 Volts
• Output voltage: 120 Volts ac
• Output voltage regulation: +/- 3%
• Output wave form: pure sine wave
• Output frequency: 50/60 Hz
• Battery low voltage alarm: 21 +/- 0.5 Volts
• Battery low voltage shutdown: 20 v +/- 0.5 Volts
• No load power consumption: fan off <0.45 DC amps or fan on <0.67 DC amps
• THD: <5%
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: -4 degrees Fahrenheit
• Full load maximum operating temperature: 176 degrees Fahrenheit (automatic shutdown)
• GFCI Reset able AC Outlet
• High input voltage shutdown: 34V
• Low input voltage shutdown: 20V
• Internal blade fuse protection
• Product size (L x W x H): 20.47” x 8.86” x 3.50”
• Weight: 16.09 lbs unit boxed 20 lbs

Manual
